Recess holder Magnetic - 6150M

Recess holder Magnetic - 6150M

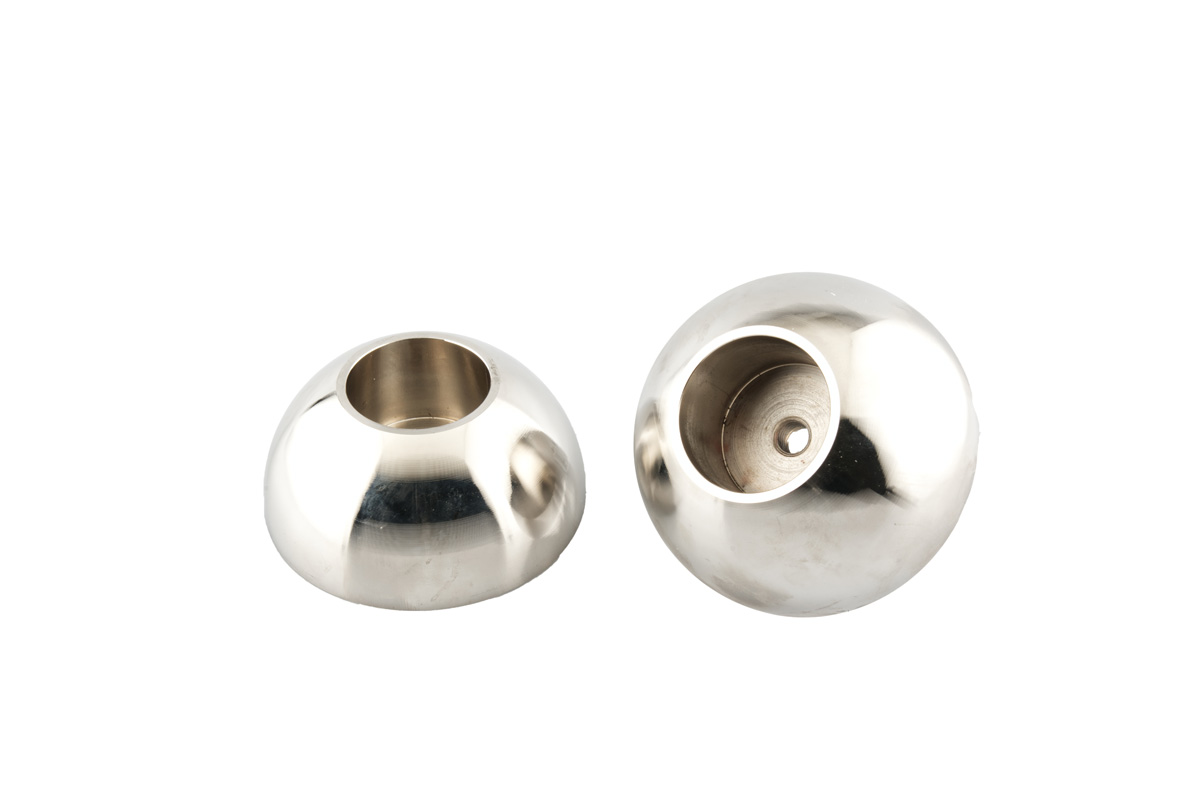

The steel recess is equipped with strong magnets that are placed on the metal formwork. This recess is used to hold the foot anchors - with only one head - with a ring during the pouring of concrete.

Nets are provided to remove the anchor recess. Always provide sufficient oil/ Vaseline to remove the recess intact from the concrete.

Technical information

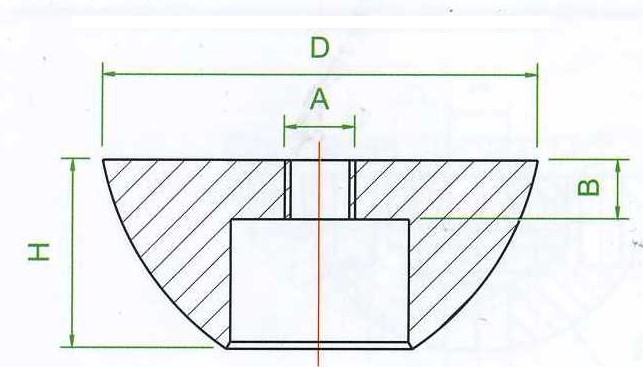

6150M Anchor type Dimensions A-B-D-H Trek (KG)
6150M-013 1.300 M08-10-60-28 50
6150M-025 2.500 M10-12-74-33 100
6150M-050 5.000 M10-12-94-42 120

This is to fix a ball head anchor together with a rubber 6151.

Recess holder Magnetic - 6150M
Enlarge image

Types and colors

ZP Zink Plated / Electro-zinguée / Galvanizado electrónicamente
